How Does a Porsche Air-Cooled Engine Work?
A Porsche air-cooled engine has no radiator and no coolant. A belt-driven fan forces air over finned cylinders and cylinder heads, and the engine oil carries away much of the heat from inside. On the 911, that oil is stored in a separate tank and circulated by a dry-sump system, which is why air-cooled 911s have their own rules for warming up, checking the oil and routine maintenance.
In short: The Porsche air-cooled engine, used in every 911 from 1964 until the 993 went out of production in 1998, relies on two things working together. A fan pushes air across the outside of the cylinders and heads, and a large volume of oil absorbs heat inside the engine and sheds it through oil coolers. Looking after the oil is looking after the engine.
Which Porsches have air-cooled engines?
Every Porsche 911 built from 1964 to 1998 has an air-cooled flat-six engine. That includes the original 2.0 litre cars of the 1960s, the 2.2, 2.4 and 2.7 litre cars that followed, the 3.0 litre 911 SC, the 3.2 Carrera, and the 964 and 993, both 3.6 litres in Carrera form. The 993 was the last of the line. Production ended in 1998, by which time the water-cooled 996 had taken over.
Porsche’s air-cooled story starts earlier than the 911. The 356, built from 1948 to 1965, used air-cooled flat-four engines, and the 912 of 1965 to 1969 put a 1.6 litre flat-four from the last 356s into the 911’s body. The principles are the same, but lubrication differs. The pushrod four-cylinder engines in the 356 and 912 keep their oil in a conventional sump under the engine, while the 911 uses a dry sump with a separate tank.
How does the cooling fan work?

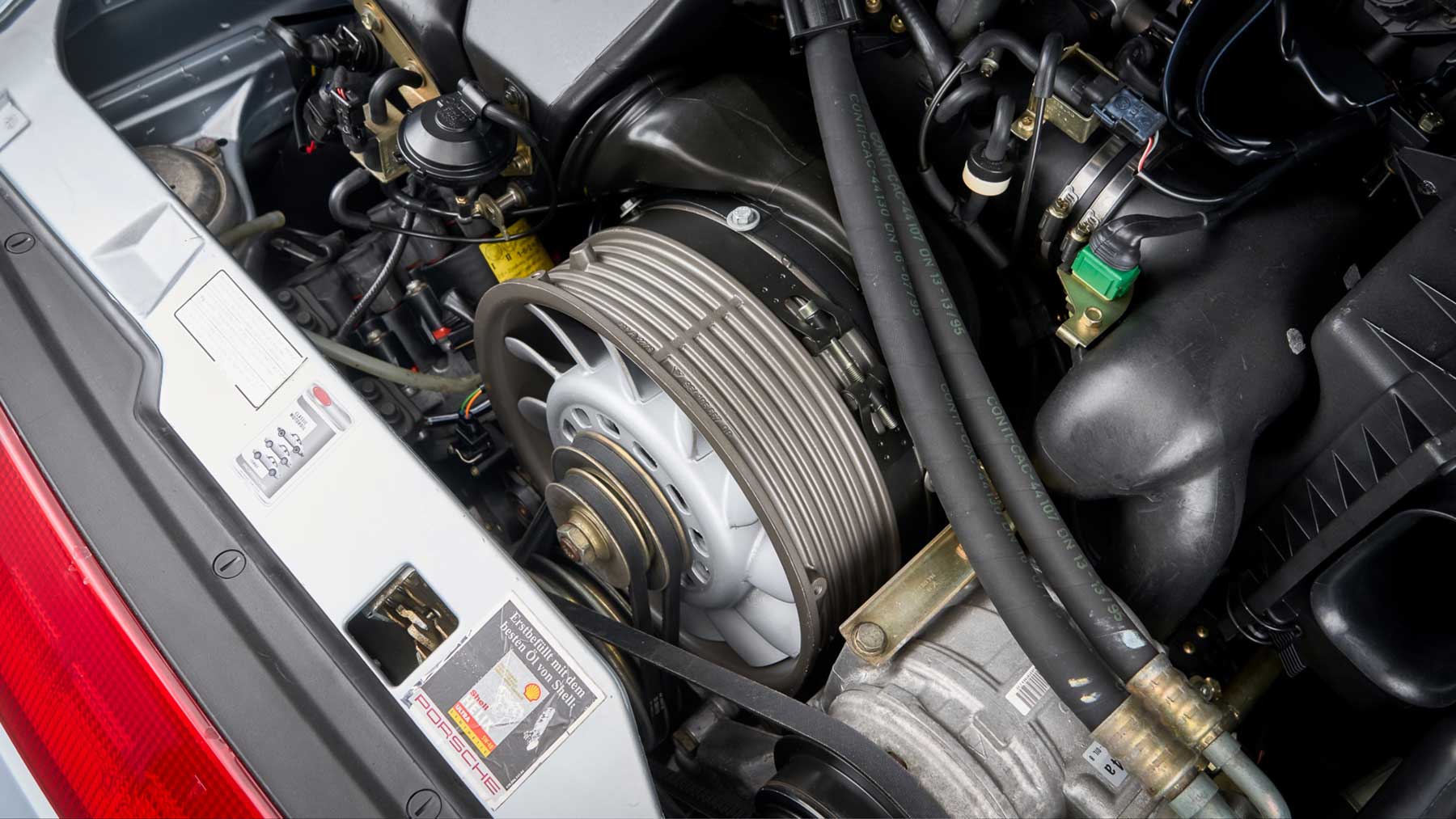

The fan does the job a radiator does in a water-cooled car. It sits upright in a housing on top of the engine, is driven by a belt from the crankshaft and turns whenever the engine is running, pushing air into a shroud that directs it down across the cylinders and cylinder heads.
Fins on each cylinder and head give the heat far more surface to escape from, and the shroud and sheet-metal covers keep the air flowing over the hot parts. Missing covers or damaged seals in the engine compartment aren’t cosmetic: they’re part of the cooling system.
On many air-cooled 911s the fan is mounted on the alternator, so a single belt drives both. If that belt breaks, the engine loses its cooling air and the charging warning light comes on at the same moment. That’s a signal to stop as soon as it’s safe, and it’s one reason a specialist checks the belt’s condition and tension at every service.
What part does oil play in a Porsche air-cooled engine?
Oil does a large share of the cooling in a Porsche air-cooled engine. The fan’s air only reaches the outside of the engine; the oil reaches the inside, carrying heat away from the crankshaft bearings, the valve gear and the pistons before it is cooled itself.
That’s why an air-cooled 911 carries a large volume of oil and relies on oil coolers to shed the heat it collects. Depending on the model and year, a 911 may have an oil cooler in the engine compartment, another at the front of the car, or both. Front-mounted coolers are fed by long oil lines and controlled by a thermostat, so oil only goes forward once it’s properly warm.
Instead of a coolant temperature gauge, an air-cooled 911 has an oil temperature gauge, and many models also show oil pressure and oil level. A reading that drifts from its usual pattern is worth investigating.
Why does the 911 use a dry sump?
The 911 uses dry-sump lubrication so the engine has a steady supply of oil whatever the car is doing. Instead of collecting in a deep pan under the crankshaft, the oil is pumped out of the engine into a separate tank, then pumped back in under pressure.
The production 911 engine had a dry sump from the start in 1964. One side of the system scavenges oil from the engine and returns it to the tank, where it can settle and lose trapped air. The other side feeds oil under pressure to the crankshaft, the camshafts (one per cylinder bank, driven by chains) and the valve gear. With no deep sump underneath, the engine can also sit lower in the car.
For owners, it means the oil level in the tank changes with whether the engine is running and how warm the oil is, which is why air-cooled 911s have their own oil-checking procedure.
What does an air-cooled engine mean for owners?
A few simple habits keep an air-cooled 911 healthy, and most come down to treating the oil well and noticing small changes early. Lawrence began working with Porsche over 40 years ago, when every 911 on the road was air-cooled.
Warm it up gently
Air-cooled engines are designed to work at temperature. Start the car, let it settle briefly, then drive off gently and keep the revs moderate until the oil temperature gauge has risen properly. Leaving it idling on the drive isn’t a good substitute, because the engine warms slowly at idle. Lots of short trips where the oil never gets hot are hard on any engine, and condensation in the oil is one result.
Check the oil the right way
On an air-cooled 911 the oil level is checked with the engine at normal operating temperature and idling, with the car on level ground. A cold reading is misleading, and topping up to a cold reading is a common way to overfill the engine. The details vary between models, so follow the procedure in your handbook.
Don’t ignore leaks
A little seepage is normal on an old air-cooled engine. A new drip, a smell of hot oil or oil on the exhaust should be looked at promptly, though, because oil on a hot exhaust is a fire risk. Typical sources include valve cover gaskets, timing chain cover seals, oil lines and the joints between engine castings. Tracing and curing leaks is part of our Porsche maintenance and repair work.
Keep the valve clearances in check
Air-cooled 911 engines up to and including the 964 have mechanical valve clearances that need checking and adjusting at the intervals in Porsche’s schedule, as do the 356 and 912 four-cylinder engines. The 993 introduced hydraulic valve adjusters, so it doesn’t need this job. Clearances that drift out of specification make the engine noisier and can lead to valve damage if they close up too far.
Look after the fuel system too
Unless they’ve been replaced, the fuel hoses and seals on an air-cooled car are now decades old, and modern petrol is harder on them than the fuel they were designed for. We recommend E5 super unleaded for every air-cooled Porsche, and our article Will E10 fuel affect my Porsche? explains why.
Is an air-cooled Porsche engine harder to look after?
An air-cooled Porsche engine isn’t fragile, but it is less forgiving of neglect than a modern water-cooled one. There’s no coolant to buffer changes in temperature, the engine depends on clean oil at the right level, and even a low-mileage car may have seals and hoses that are decades old.
These engines are also very well understood. Regular oil changes, sensible warm-ups, prompt attention to leaks and valve adjustments on time go a long way, and our guide to how often to service a classic Porsche sets out a sensible routine. When an engine does need major work, a careful rebuild can restore it, and that’s work we carry out through our Porsche engine and gearbox rebuild service at our High Wycombe workshop.
Common questions
Is a Porsche air-cooled engine cooled only by air?
No. The fan’s air cools the outside of the cylinders and heads, but oil does a large share of the work inside the engine and is then cooled itself by one or more oil coolers. That’s why oil level and oil condition matter so much on an air-cooled Porsche.
Why does an air-cooled 911 have an oil temperature gauge instead of a water temperature gauge?
Because there’s no coolant to measure. Oil temperature is the best indication of how hot an air-cooled 911 engine is running, so it’s the gauge to watch while the car warms up and in slow traffic.
How do I check the oil on an air-cooled 911?
With the engine at normal operating temperature and idling, and the car on level ground, following the procedure in the handbook. The 911’s dry-sump system means a cold reading isn’t reliable, and topping up to one can overfill the engine.
Does a Porsche 993 need valve adjustments?
No. The 993 was the first 911 with hydraulic valve adjusters, so it doesn’t need the periodic valve clearance adjustment that earlier air-cooled 911s, including the 964, require. Everything else in Porsche’s service schedule for the 993 still applies.
